logwのサーバーにOpenVPNをインストールしました。結果的には成功？したのですがちょっとこのあとどうしたらいいのかわからないので設定の備忘録として残しておきます。

サーバー環境

• サーバーOS：CentOS6.3
• IPアドレス：49.212.167.84
• ソフトウェア：OpenVPN

クライアント環境

• Windows7 64bit
• クライアントソフトウェア：OpenVPN

インストール方法

インストール方法としては、｢yum｣を使ってインストールしたいと思います。標準のリポジトリには用意されていないので｢EPELリポジトリ｣をインストールします。

EPELリポジトリの導入方法

[c]

yum -y install yum-plugin-priorities ←vyum-prioritiesインストール

[/c]   [c]

vi /etc/yum.repos.d/CentOS-Base.repo ← 標準リポジトリ設定ファイル編集

[/c]   [c] [base] name=CentOS-$releasever - Base mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=os #baseurl=http://mirror.centos.org/centos/$releasever/os/$basearch/ gpgcheck=1 gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6 priority=1　←　追加 #released updates [updates] name=CentOS-$releasever - Updates mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=updates #baseurl=http://mirror.centos.org/centos/$releasever/updates/$basearch/ gpgcheck=1 gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6 priority=1　←　追加 #additional packages that may be useful [extras] name=CentOS-$releasever - Extras mirrorlist=http://mirrorlist.centos.org/?release=$releasever&arch=$basearch&repo=extras #baseurl=http://mirror.centos.org/centos/$releasever/extras/$basearch/ gpgcheck=1 gpgkey=http://mirror.centos.org/centos/RPM-GPG-KEY-CentOS-6 priority=1　←　追加 [/c]

EPELリポジトリ導入

[c]

rpm -ivh http://ftp.riken.jp/Linux/fedora/epel/6/i386/epel-release-6-5.noarch.rpm ← EPELリポジトリインストール

[/c]   [c]

yum -y update epel-release ← epel-releaseアップデート

[/c]

OpenVPNのインストール

OpenVPNをインストールしたいと思います。http://centossrv.com/openvpn.shtmlを参考にしてます。 [c]

cp -r /usr/share/openvpn/easy-rsa/2.0/ /etc/openvpn/easy-rsa ← 証明書／鍵作成用ディレクトリをコピー

cd /etc/openvpn/easy-rsa/ ← 証明書／鍵作成用ディレクトリへ移動

chmod +x * ← 各スクリプトへ実行権限付加

[/c]

whichopensslcnf編集

[c] elif $OPENSSL version | grep -E "1.0.([[:digit:]][[:alnum:]])" > /dev/null; then をバグ対策のため以下のようにします。 elif $OPENSSL version | grep -E "1.0.([[:digit:]][[:alnum:]]?)" > /dev/null; then [/c] ↓ 編集後はこんな感じになります。 [c]

vi whichopensslcnf

#!/bin/sh cnf="$1/openssl.cnf" if [ "$OPENSSL" ]; then if $OPENSSL version | grep -E "0.9.6[[:alnum:]]" > /dev/null; then cnf="$1/openssl-0.9.6.cnf" elif $OPENSSL version | grep -E "0.9.8[[:alnum:]]" > /dev/null; then cnf="$1/openssl-0.9.8.cnf" elif $OPENSSL version | grep -E "1.0.([[:digit:]][[:alnum:]]?)" > /dev/null; then cnf="$1/openssl-1.0.0.cnf" else cnf="$1/openssl.cnf" fi fi echo $cnf if [ ! -r $cnf ]; then echo "**************************************************************" >&2 echo " No $cnf file could be found" >&2 echo " Further invocations will fail" >&2 echo "**************************************************************" >&2 fi exit 0 [/c]

証明書／鍵作成用環境変数設定ファイル編集

[c]

vi vars

export KEY_COUNTRY="US" export KEY_PROVINCE="CA" export KEY_CITY="SanFrancisco" export KEY_ORG="Fort-Funston" export KEY_EMAIL="me@myhost.mydomain" ↓ export KEY_COUNTRY="JP"　←　サーバー所在地(国名)を指定(例:JP) export KEY_PROVINCE="Tokyo"　←　サーバー所在地(都道府県名)を指定(例:Tokyo) export KEY_CITY="Shibuya"　←　サーバー所在地(市区町村名)を指定(例:Shibuya) export KEY_ORG="logw.jp"　←　サーバー名を指定 export KEY_EMAIL="contact@logw.jp"　←　サーバー管理者メールアドレスを指定 [/c]

証明書／鍵作成用環境変数設定ファイル内容をシステムに反映

[c]

source vars

NOTE: If you run ./clean-all, I will be doing a rm -rf on /etc/openvpn/easy-rsa/keys [/c]

証明書／鍵作成先ディレクトリ初期化 ※OpenVPNインストール後最初の1回のみ

[c]

./clean-all

./build-ca ← CA証明書・秘密鍵作成

Generating a 1024 bit RSA private key .......++++++ ......++++++ writing new private key to 'ca.key'

You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank.

Country Name (2 letter code) [JP]:　←　空ENTER State or Province Name (full name) [Kanagawa]:　←　空ENTER Locality Name (eg, city) [Kawasaki]:　←　空ENTER Organization Name (eg, company) [centossrv.com]:　←　空ENTER Organizational Unit Name (eg, section) []:　←　空ENTER Common Name (eg, your name or your server's hostname) [centossrv.com CA]:　←　空ENTER Email Address [root@centossrv.com]:　←　空ENTER

cp keys/ca.crt /etc/openvpn/ ← CA証明書をOpenVPN設定ファイル格納ディレクトリへコピー

[/c]

サーバー証明書・秘密鍵作成

[c]

./build-key-server server

Generating a 1024 bit RSA private key .......++++++ .++++++ writing new private key to 'server.key'

You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank.

Country Name (2 letter code) [JP]:　←　空ENTER State or Province Name (full name) [Kanagawa]:　←　空ENTER Locality Name (eg, city) [Kawasaki]:　←　空ENTER Organization Name (eg, company) [centossrv.com]:　←　空ENTER Organizational Unit Name (eg, section) []:　←　空ENTER Common Name (eg, your name or your server's hostname) [server]:　←　空ENTER Email Address [root@centossrv.com]:　←　空ENTER Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []:　←　空ENTER An optional company name []:　←　空ENTER Using configuration from /usr/share/openvpn/easy-rsa/2.0/openssl.cnf Check that the request matches the signature Signature ok The Subject's Distinguished Name is as follows countryName :PRINTABLE:'JP' stateOrProvinceName :PRINTABLE:'Tokyo' localityName :PRINTABLE:'Shibuya' organizationName :PRINTABLE:'logw.jp' commonName :PRINTABLE:'server' emailAddress :IA5STRING:'contact@logw.jp' Certificate is to be certified until Nov 15 13:36:57 2016 GMT (3650 days) Sign the certificate? [y/n]:y　←　y応答 1 out of 1 certificate requests certified, commit? [y/n]y　←　y応答 Write out database with 1 new entries Data Base Updated [root@centos easy-rsa]# cp keys/server.crt /etc/openvpn/　←　サーバー証明書をOpenVPN設定ファイル格納ディレクトリへコピー [root@centos easy-rsa]# cp keys/server.key /etc/openvpn/　←　サーバー秘密鍵をOpenVPN設定ファイル格納ディレクトリへコピー [/c]

DH(Diffie Hellman)パラメータ作成

[c]

./build-dh　←　DHパラメータ作成

Generating DH parameters, 1024 bit long safe prime, generator 2 This is going to take a long time ※時間がかかる

cp keys/dh1024.pem /etc/openvpn/　←　DHパラメータをOpenVPN設定ファイル格納ディレクトリへコピー

[/c]

証明書廃止リスト作成

[c]

./build-key dmy ← ダミーのクライアント証明書作成

Generating a 1024 bit RSA private key ..++++++ ...............................................++++++ writing new private key to 'dmy.key'

You are about to be asked to enter information that will be incorporated into your certificate request. What you are about to enter is what is called a Distinguished Name or a DN. There are quite a few fields but you can leave some blank For some fields there will be a default value, If you enter '.', the field will be left blank.

Country Name (2 letter code) [JP]:　←　空ENTER State or Province Name (full name) [Kanagawa]:　←　空ENTER Locality Name (eg, city) [Kawasaki]:　←　空ENTER Organization Name (eg, company) [centossrv.com]:　←　空ENTER Organizational Unit Name (eg, section) []:　←　空ENTER Common Name (eg, your name or your server's hostname) [dmy]:　←　空ENTER Email Address [root@centossrv.com]:　←　空ENTER Please enter the following 'extra' attributes to be sent with your certificate request A challenge password []:　←　空ENTER An optional company name []:　←　空ENTER Using configuration from /etc/openvpn/easy-rsa/openssl.cnf Check that the request matches the signature Signature ok The Subject's Distinguished Name is as follows countryName :PRINTABLE:'JP' stateOrProvinceName :PRINTABLE:'Tokyo' localityName :PRINTABLE:'Shibuya' organizationName :PRINTABLE:'logw.jp' commonName :PRINTABLE:'dmy' emailAddress :IA5STRING:'contact@logw.jp' Certificate is to be certified until Dec 2 07:48:44 2016 GMT (3650 days) Sign the certificate? [y/n]:y　←　y応答 1 out of 1 certificate requests certified, commit? [y/n]y　←　y応答 Write out database with 1 new entries Data Base Updated

vi openssl-1.0.0.cnf

#[ pkcs11_section ]　←　行頭に#を追加してコメントアウト #engine_id = pkcs11　←　行頭に#を追加してコメントアウト #dynamic_path = /usr/lib/engines/engine_pkcs11.so　←　行頭に#を追加してコメントアウト #MODULE_PATH = $ENV::PKCS11_MODULE_PATH　←　行頭に#を追加してコメントアウト #PIN = $ENV::PKCS11_PIN　←　行頭に#を追加してコメントアウト #init = 0　←　行頭に#を追加してコメントアウト ※上記はクライアント証明書廃止時に以下のようなエラーメッセージが出力されてしまうことの対処 Using configuration from /etc/openvpn/easy-rsa/openssl.cnf error on line 282 of config file '/etc/openvpn/easy-rsa/openssl.cnf' 25472:error:0E065068:configuration file routines:STR_COPY:variable has no value:conf_def.c:629:line 282 Using configuration from /etc/openvpn/easy-rsa/openssl.cnf error on line 282 of config file '/etc/openvpn/easy-rsa/openssl.cnf' 25473:error:0E065068:configuration file routines:STR_COPY:variable has no value:conf_def.c:629:line 282 cat: crl.pem: そのようなファイルやディレクトリはありません client1.crt: /C=JP/ST=Kanagawa/L=Kawasaki/O=centossrv.com/CN=client1/emailAddress=root@centossrv.com error 3 at 0 depth lookup:unable to get certificate CRL [/c] 編集後は以下のようになります。 [c]

For use with easy-rsa version 2.0 and OpenSSL 1.0.0*

This definition stops the following lines choking if HOME isn't

defined.

HOME = . RANDFILE = $ENV::HOME/.rnd openssl_conf = openssl_init [ openssl_init ]

Extra OBJECT IDENTIFIER info:

#oid_file = $ENV::HOME/.oid oid_section = new_oids engines = engine_section

To use this configuration file with the "-extfile" option of the

"openssl x509" utility, name here the section containing the

X.509v3 extensions to use:

extensions =

(Alternatively, use a configuration file that has only

X.509v3 extensions in its main [= default] section.)

[ new_oids ]

We can add new OIDs in here for use by 'ca' and 'req'.

Add a simple OID like this:

testoid1=1.2.3.4

Or use config file substitution like this:

testoid2=${testoid1}.5.6

#################################################################### [ ca ] default_ca = CA_default # The default ca section #################################################################### [ CA_default ] dir = $ENV::KEY_DIR # Where everything is kept certs = $dir # Where the issued certs are kept crl_dir = $dir # Where the issued crl are kept database = $dir/index.txt # database index file. new_certs_dir = $dir # default place for new certs. certificate = $dir/ca.crt # The CA certificate serial = $dir/serial # The current serial number crl = $dir/crl.pem # The current CRL private_key = $dir/ca.key # The private key RANDFILE = $dir/.rand # private random number file x509_extensions = usr_cert # The extentions to add to the cert

Extensions to add to a CRL. Note: Netscape communicator chokes on V2 CRLs

so this is commented out by default to leave a V1 CRL.

crl_extensions = crl_ext

default_days = 3650 # how long to certify for default_crl_days= 30 # how long before next CRL default_md = md5 # use public key default MD preserve = no # keep passed DN ordering

A few difference way of specifying how similar the request should look

For type CA, the listed attributes must be the same, and the optional

and supplied fields are just that :-)

policy = policy_anything

For the CA policy

[ policy_match ] countryName = match stateOrProvinceName = match organizationName = match organizationalUnitName = optional commonName = supplied name = optional emailAddress = optional

For the 'anything' policy

At this point in time, you must list all acceptable 'object'

types.

[ policy_anything ] countryName = optional stateOrProvinceName = optional localityName = optional organizationName = optional organizationalUnitName = optional commonName = supplied name = optional emailAddress = optional #################################################################### [ req ] default_bits = $ENV::KEY_SIZE default_keyfile = privkey.pem distinguished_name = req_distinguished_name attributes = req_attributes x509_extensions = v3_ca # The extentions to add to the self signed cert

Passwords for private keys if not present they will be prompted for

input_password = secret

output_password = secret

This sets a mask for permitted string types. There are several options.

default: PrintableString, T61String, BMPString.

pkix : PrintableString, BMPString (PKIX recommendation after 2004).

utf8only: only UTF8Strings (PKIX recommendation after 2004).

nombstr : PrintableString, T61String (no BMPStrings or UTF8Strings).

MASK:XXXX a literal mask value.

string_mask = nombstr

req_extensions = v3_req # The extensions to add to a certificate request

[ req_distinguished_name ] countryName = Country Name (2 letter code) countryName_default = $ENV::KEY_COUNTRY countryName_min = 2 countryName_max = 2 stateOrProvinceName = State or Province Name (full name) stateOrProvinceName_default = $ENV::KEY_PROVINCE localityName = Locality Name (eg, city) localityName_default = $ENV::KEY_CITY 0.organizationName = Organization Name (eg, company) 0.organizationName_default = $ENV::KEY_ORG

we can do this but it is not needed normally :-)

#1.organizationName = Second Organization Name (eg, company) #1.organizationName_default = World Wide Web Pty Ltd organizationalUnitName = Organizational Unit Name (eg, section) #organizationalUnitName_default = commonName = Common Name (eg, your name or your server's hostname) commonName_max = 64 name = Name name_max = 64 emailAddress = Email Address emailAddress_default = $ENV::KEY_EMAIL emailAddress_max = 40

JY -- added for batch mode

organizationalUnitName_default = $ENV::KEY_OU commonName_default = $ENV::KEY_CN name_default = $ENV::KEY_NAME

SET-ex3 = SET extension number 3

[ req_attributes ] challengePassword = A challenge password challengePassword_min = 4 challengePassword_max = 20 unstructuredName = An optional company name [ usr_cert ]

These extensions are added when 'ca' signs a request.

This goes against PKIX guidelines but some CAs do it and some software

requires this to avoid interpreting an end user certificate as a CA.

basicConstraints=CA:FALSE

Here are some examples of the usage of nsCertType. If it is omitted

the certificate can be used for anything *except* object signing.

This is OK for an SSL server.

nsCertType = server

For an object signing certificate this would be used.

nsCertType = objsign

For normal client use this is typical

nsCertType = client, email

and for everything including object signing:

nsCertType = client, email, objsign

This is typical in keyUsage for a client certificate.

keyUsage = nonRepudiation, digitalSignature, keyEncipherment

This will be displayed in Netscape's comment listbox.

nsComment = "Easy-RSA Generated Certificate"

PKIX recommendations harmless if included in all certificates.

subjectKeyIdentifier=hash authorityKeyIdentifier=keyid,issuer:always extendedKeyUsage=clientAuth keyUsage = digitalSignature

This stuff is for subjectAltName and issuerAltname.

Import the email address.

subjectAltName=email:copy

Copy subject details

issuerAltName=issuer:copy

#nsCaRevocationUrl = http://www.domain.dom/ca-crl.pem #nsBaseUrl #nsRevocationUrl #nsRenewalUrl #nsCaPolicyUrl #nsSslServerName [ server ]

JY ADDED -- Make a cert with nsCertType set to "server"

basicConstraints=CA:FALSE nsCertType = server nsComment = "Easy-RSA Generated Server Certificate" subjectKeyIdentifier=hash authorityKeyIdentifier=keyid,issuer:always extendedKeyUsage=serverAuth keyUsage = digitalSignature, keyEncipherment [ v3_req ]

Extensions to add to a certificate request

basicConstraints = CA:FALSE keyUsage = nonRepudiation, digitalSignature, keyEncipherment [ v3_ca ]

Extensions for a typical CA

PKIX recommendation.

subjectKeyIdentifier=hash authorityKeyIdentifier=keyid:always,issuer:always

This is what PKIX recommends but some broken software chokes on critical

extensions.

#basicConstraints = critical,CA:true

So we do this instead.

basicConstraints = CA:true

Key usage: this is typical for a CA certificate. However since it will

prevent it being used as an test self-signed certificate it is best

left out by default.

keyUsage = cRLSign, keyCertSign

Some might want this also

nsCertType = sslCA, emailCA

Include email address in subject alt name: another PKIX recommendation

subjectAltName=email:copy

Copy issuer details

issuerAltName=issuer:copy

DER hex encoding of an extension: beware experts only!

obj=DER:02:03

Where 'obj' is a standard or added object

You can even override a supported extension:

basicConstraints= critical, DER:30:03:01:01:FF

[ crl_ext ]

CRL extensions.

Only issuerAltName and authorityKeyIdentifier make any sense in a CRL.

issuerAltName=issuer:copy

authorityKeyIdentifier=keyid:always,issuer:always [ engine_section ]

If you are using PKCS#11

Install engine_pkcs11 of opensc (www.opensc.org)

And uncomment the following

verify that dynamic_path points to the correct location

#pkcs11 = pkcs11_section #[ pkcs11_section ] #engine_id = pkcs11 #dynamic_path = /usr/lib/engines/engine_pkcs11.so #MODULE_PATH = $ENV::PKCS11_MODULE_PATH #PIN = $ENV::PKCS11_PIN #init = 0 [/c]

ダミーのクライアント証明書廃止

[c]

./revoke-full dmy

Using configuration from /etc/openvpn/easy-rsa/openssl.cnf Revoking Certificate 0B. Data Base Updated Using configuration from /etc/openvpn/easy-rsa/openssl.cnf dmy.crt: /C=JP/ST=Tokyo/L=Shibuya/O=logw.jp/CN=dmy/emailAddress=contact@logw.jp error 23 at 0 depth lookup:certificate revoked #cp keys/crl.pem /etc/openvpn/　←　証明書廃止リストをOpenVPN設定ファイル格納ディレクトリへコピー #cd　←　証明書／鍵作成用ディレクトリを抜ける [/c]

OpenVPN設定

[c]

openvpn --genkey --secret /etc/openvpn/ta.key　←　TLS認証鍵をOpenVPN設定ファイル格納ディレクトリへ作成

cp /usr/share/doc/openvpn-*/sample-config-files/server.conf /etc/openvpn/ ← OpenVPN設定ファイルをサンプルよりコピー

[/c]

OpenVPN設定ファイル編集

[c]

vi /etc/openvpn/server.confdev tun　←　VPNインタフェースとしてTUNを指定(デフォルト)

server 10.8.0.0 255.255.255.0　←　VPNクライアント割当てアドレス範囲として10.8.0.0/24を指定(デフォルト) ;push "route 192.168.10.0 255.255.255.0" ;push "route 192.168.20.0 255.255.255.0" push "route xxx.xxx.xxx.0 255.255.255.0"　←　追加(LAN(例:192.168.1.0/24)へのルートをVPNサーバー経由にする) tls-auth ta.key 0 # This file is secret　←　行頭の;を削除してコメント解除(TLS認証有効化) user nobody　←　行頭の;を削除してコメント解除(OpenVPN実行権限を下げる) group nobody　←　行頭の;を削除してコメント解除(OpenVPN実行権限を下げる) log-append /var/log/openvpn.log　←　行頭の;を削除してコメント解除(ログを/var/log/openvpn.logに記録する) management localhost 7505　←　最終行へ追加(管理インタフェースの有効化※後述) crl-verify crl.pem　←　最終行へ追加(証明書廃止リストの有効化) [/c] 設定すると以下のようになります。 [c] #################################################

Sample OpenVPN 2.0 config file for

multi-client server.

This file is for the server side

of a many-clients one-server

OpenVPN configuration.

OpenVPN also supports

single-machine single-machine

configurations (See the Examples page

on the web site for more info).

This config should work on Windows

or Linux/BSD systems. Remember on

Windows to quote pathnames and use

double backslashes, e.g.:

"C:\Program Files\OpenVPN\config\foo.key"

Comments are preceded with '#' or ';'

#################################################

Which local IP address should OpenVPN

listen on? (optional)

;local a.b.c.d

Which TCP/UDP port should OpenVPN listen on?

If you want to run multiple OpenVPN instances

on the same machine, use a different port

number for each one. You will need to

open up this port on your firewall.

port 1194

TCP or UDP server?

;proto tcp proto udp

"dev tun" will create a routed IP tunnel,

"dev tap" will create an ethernet tunnel.

Use "dev tap0" if you are ethernet bridging

and have precreated a tap0 virtual interface

and bridged it with your ethernet interface.

If you want to control access policies

over the VPN, you must create firewall

rules for the the TUN/TAP interface.

On non-Windows systems, you can give

an explicit unit number, such as tun0.

On Windows, use "dev-node" for this.

On most systems, the VPN will not function

unless you partially or fully disable

the firewall for the TUN/TAP interface.

;dev tap dev tun

Windows needs the TAP-Win32 adapter name

from the Network Connections panel if you

have more than one. On XP SP2 or higher,

you may need to selectively disable the

Windows firewall for the TAP adapter.

Non-Windows systems usually don't need this.

;dev-node MyTap

SSL/TLS root certificate (ca), certificate

(cert), and private key (key). Each client

and the server must have their own cert and

key file. The server and all clients will

use the same ca file.

See the "easy-rsa" directory for a series

of scripts for generating RSA certificates

and private keys. Remember to use

a unique Common Name for the server

and each of the client certificates.

Any X509 key management system can be used.

OpenVPN can also use a PKCS #12 formatted key file

(see "pkcs12" directive in man page).

ca ca.crt cert server.crt key server.key # This file should be kept secret

Diffie hellman parameters.

Generate your own with:

openssl dhparam -out dh1024.pem 1024

Substitute 2048 for 1024 if you are using

2048 bit keys.

dh dh1024.pem

Configure server mode and supply a VPN subnet

for OpenVPN to draw client addresses from.

The server will take 10.8.0.1 for itself,

the rest will be made available to clients.

Each client will be able to reach the server

on 10.8.0.1. Comment this line out if you are

ethernet bridging. See the man page for more info.

server 10.8.0.0 255.255.255.0

Maintain a record of client virtual IP address

associations in this file. If OpenVPN goes down or

is restarted, reconnecting clients can be assigned

the same virtual IP address from the pool that was

previously assigned.

ifconfig-pool-persist ipp.txt

Configure server mode for ethernet bridging.

You must first use your OS's bridging capability

to bridge the TAP interface with the ethernet

NIC interface. Then you must manually set the

IP/netmask on the bridge interface, here we

assume 10.8.0.4/255.255.255.0. Finally we

must set aside an IP range in this subnet

(start=10.8.0.50 end=10.8.0.100) to allocate

to connecting clients. Leave this line commented

out unless you are ethernet bridging.

;server-bridge 10.8.0.4 255.255.255.0 10.8.0.50 10.8.0.100

Configure server mode for ethernet bridging

using a DHCP-proxy, where clients talk

to the OpenVPN server-side DHCP server

to receive their IP address allocation

and DNS server addresses. You must first use

your OS's bridging capability to bridge the TAP

interface with the ethernet NIC interface.

Note: this mode only works on clients (such as

Windows), where the client-side TAP adapter is

bound to a DHCP client.

;server-bridge

Push routes to the client to allow it

to reach other private subnets behind

the server. Remember that these

private subnets will also need

to know to route the OpenVPN client

address pool (10.8.0.0/255.255.255.0)

back to the OpenVPN server.

;push "route 192.168.10.0 255.255.255.0" ;push "route 192.168.20.0 255.255.255.0" push "route 49.212.167.84 255.255.254.0"

To assign specific IP addresses to specific

clients or if a connecting client has a private

subnet behind it that should also have VPN access,

use the subdirectory "ccd" for client-specific

configuration files (see man page for more info).

EXAMPLE: Suppose the client

having the certificate common name "Thelonious"

also has a small subnet behind his connecting

machine, such as 192.168.40.128/255.255.255.248.

First, uncomment out these lines:

;client-config-dir ccd ;route 192.168.40.128 255.255.255.248

Then create a file ccd/Thelonious with this line:

iroute 192.168.40.128 255.255.255.248

This will allow Thelonious' private subnet to

access the VPN. This example will only work

if you are routing, not bridging, i.e. you are

using "dev tun" and "server" directives.

EXAMPLE: Suppose you want to give

Thelonious a fixed VPN IP address of 10.9.0.1.

First uncomment out these lines:

;client-config-dir ccd ;route 10.9.0.0 255.255.255.252

Then add this line to ccd/Thelonious:

ifconfig-push 10.9.0.1 10.9.0.2

Suppose that you want to enable different

firewall access policies for different groups

of clients. There are two methods:

(1) Run multiple OpenVPN daemons, one for each

group, and firewall the TUN/TAP interface

for each group/daemon appropriately.

(2) (Advanced) Create a script to dynamically

modify the firewall in response to access

from different clients. See man

page for more info on learn-address script.

;learn-address ./script

If enabled, this directive will configure

all clients to redirect their default

network gateway through the VPN, causing

all IP traffic such as web browsing and

and DNS lookups to go through the VPN

(The OpenVPN server machine may need to NAT

or bridge the TUN/TAP interface to the internet

in order for this to work properly).

;push "redirect-gateway def1 bypass-dhcp"

Certain Windows-specific network settings

can be pushed to clients, such as DNS

or WINS server addresses. CAVEAT:

http://openvpn.net/faq.html#dhcpcaveats

The addresses below refer to the public

DNS servers provided by opendns.com.

;push "dhcp-option DNS 208.67.222.222" ;push "dhcp-option DNS 208.67.220.220"

Uncomment this directive to allow different

clients to be able to "see" each other.

By default, clients will only see the server.

To force clients to only see the server, you

will also need to appropriately firewall the

server's TUN/TAP interface.

;client-to-client

Uncomment this directive if multiple clients

might connect with the same certificate/key

files or common names. This is recommended

only for testing purposes. For production use,

each client should have its own certificate/key

pair.

IF YOU HAVE NOT GENERATED INDIVIDUAL

CERTIFICATE/KEY PAIRS FOR EACH CLIENT,

EACH HAVING ITS OWN UNIQUE "COMMON NAME",

UNCOMMENT THIS LINE OUT.

;duplicate-cn

The keepalive directive causes ping-like

messages to be sent back and forth over

the link so that each side knows when

the other side has gone down.

Ping every 10 seconds, assume that remote

peer is down if no ping received during

a 120 second time period.

keepalive 10 120

For extra security beyond that provided

by SSL/TLS, create an "HMAC firewall"

to help block DoS attacks and UDP port flooding.

Generate with:

openvpn --genkey --secret ta.key

The server and each client must have

a copy of this key.

The second parameter should be '0'

on the server and '1' on the clients.

tls-auth ta.key 0 # This file is secret

Select a cryptographic cipher.

This config item must be copied to

the client config file as well.

;cipher BF-CBC # Blowfish (default) ;cipher AES-128-CBC # AES ;cipher DES-EDE3-CBC # Triple-DES

Enable compression on the VPN link.

If you enable it here, you must also

enable it in the client config file.

comp-lzo

The maximum number of concurrently connected

clients we want to allow.

;max-clients 100

It's a good idea to reduce the OpenVPN

daemon's privileges after initialization.

You can uncomment this out on

non-Windows systems.

user nobody group nobody

The persist options will try to avoid

accessing certain resources on restart

that may no longer be accessible because

of the privilege downgrade.

persist-key persist-tun

Output a short status file showing

current connections, truncated

and rewritten every minute.

status openvpn-status.log

By default, log messages will go to the syslog (or

on Windows, if running as a service, they will go to

the "\Program Files\OpenVPN\log" directory).

Use log or log-append to override this default.

"log" will truncate the log file on OpenVPN startup,

while "log-append" will append to it. Use one

or the other (but not both).

;log openvpn.log log-append /var/log/openvpn.log

Set the appropriate level of log

file verbosity.

0 is silent, except for fatal errors

4 is reasonable for general usage

5 and 6 can help to debug connection problems

9 is extremely verbose

verb 3

Silence repeating messages. At most 20

sequential messages of the same message

category will be output to the log.

;mute 20 management localhost 7505 crl-verify crl.pem [/c]

VPNインタフェース用ファイアウォール自動設定

[c]

vi /etc/openvpn/openvpn-startup ← OpenVPN起動時実行スクリプト新規作成

[/c]   [c] #!/bin/bash

VPNインタフェースiptablesルール削除スクリプト実行※必須

/etc/openvpn/openvpn-shutdown

VPNサーバーからの送信を許可※必須

iptables -I OUTPUT -o tun+ -j ACCEPT iptables -I FORWARD -o tun+ -j ACCEPT

VPNクライアントからVPNサーバーへのアクセスを許可する場合

iptables -I INPUT -i tun+ -j ACCEPT

VPNクライアントからLANへのアクセスを許可する場合

(例としてVPNクライアントから192.168.1.0/24へのアクセスを許可する場合)

※192.168.1.0/24側のファイアウォール等でVPNクライアント(10.8.0.0/24)からのアクセスを許可すること

iptables -I FORWARD -i tun+ -d 192.168.1.0/24 -j ACCEPT

VPNクライアントからLAN内特定マシンのみへのアクセスを許可する場合

(例としてVPNクライアントから192.168.1.3へのアクセスを許可する場合)

※192.168.1.3側のファイアウォール等でVPNクライアント(10.8.0.0/24)からのアクセスを許可すること

iptables -I FORWARD -i tun+ -d 192.168.1.3 -j ACCEPT chmod +x /etc/openvpn/openvpn-startup ← OpenVPN起動時実行スクリプトへ実行権限付加 [/c]

VPNインタフェース用ファイアウォール自動設定解除

[c]

vi /etc/openvpn/openvpn-shutdown ← OpenVPN停止時実行スクリプト新規作成

#!/bin/bash

VPNインタフェース(tun+)用iptablesルール削除関数

delete() { rule_number=iptables -L $target --line-numbers -n -v|grep tun.|awk '{print $1}'|sort -r for num in $rule_number do iptables -D $target $num done }

VPNインタフェース(tun+)用iptables受信ルール削除

target='INPUT' delete

VPNインタフェース(tun+)用iptables転送ルール削除

target='FORWARD' delete

VPNインタフェース(tun+)用iptables送信ルール削除

target='OUTPUT' delete

chmod +x /etc/openvpn/openvpn-shutdown　←　OpenVPN停止時実行スクリプトへ実行権限付加

[/c]

OpenVPNログローテーション設定

[c]

vi /etc/logrotate.d/openvpn　←　OpenVPNログローテーション設定ファイル新規作成

/var/log/openvpn.log { missingok notifempty sharedscripts postrotate /etc/rc.d/init.d/openvpn restart 2>&1 > /dev/null || true endscript } [/c]

OpenVPN起動(サーバー側)

[c]

vi /etc/rc.d/init.d/openvpn　←　OpenVPN起動スクリプト編集

echo 1 > /proc/sys/net/ipv4/ip_forward　←　行頭の#を削除してコメント解除(パケット転送有効化) script_security="--script-security 2"　←　OpenVPN起動時下記エラーメッセージ出力対処(｢-｣を｢=｣へ修正) openvpn を起動中: /etc/rc.d/init.d/openvpn: line 169: script_security---script-security 2: command not found [/c] 修正するとこんな感じになります。 [c] #!/bin/sh

openvpn This shell script takes care of starting and stopping

openvpn on RedHat or other chkconfig-based system.

chkconfig: - 24 76

processname: openvpn

description: OpenVPN is a robust and highly flexible tunneling \

application that uses all of the encryption, \

authentication, and certification features of the OpenSSL \

library to securely tunnel IP networks over a single UDP \

port.

Contributed to the OpenVPN project by

BEGIN INIT INFO

Provides: openvpn

Required-Start: $network

Required-Stop: $network

Short-Description: start and stop openvpn

Description: OpenVPN is a robust and highly flexible tunneling \

application that uses all of the encryption, \

authentication, and certification features of the OpenSSL \

library to securely tunnel IP networks over a single UDP \

port.

END INIT INFO

Douglas Keller doug@voidstar.dyndns.org

2002.05.15

To install:

copy this file to /etc/rc.d/init.d/openvpn

shell> chkconfig --add openvpn

shell> mkdir /etc/openvpn

make .conf or .sh files in /etc/openvpn (see below)

To uninstall:

run: chkconfig --del openvpn

Author's Notes:

I have created an /etc/init.d init script and enhanced openvpn.spec to

automatically register the init script. Once the RPM is installed you

can start and stop OpenVPN with "service openvpn start" and "service

openvpn stop".

The init script does the following:

- Starts an openvpn process for each .conf file it finds in

/etc/openvpn.

- If /etc/openvpn/xxx.sh exists for a xxx.conf file then it executes

it before starting openvpn (useful for doing openvpn --mktun...).

- In addition to start/stop you can do:

service openvpn reload - SIGHUP

service openvpn reopen - SIGUSR1

service openvpn status - SIGUSR2

Modifications:

2003.05.02

* Changed == to = for sh compliance (Bishop Clark).

* If condrestart|reload|reopen|status, check that we were

actually started (James Yonan).

* Added lock, piddir, and work variables (James Yonan).

* If start is attempted twice, without an intervening stop, or

if start is attempted when previous start was not properly

shut down, then kill any previously started processes, before

commencing new start operation (James Yonan).

* Do a better job of flagging errors on start, and properly

returning success or failure status to caller (James Yonan).

2005.04.04

* Added openvpn-startup and openvpn-shutdown script calls

(James Yonan).

Location of openvpn binary

openvpn="" openvpn_locations="/usr/sbin/openvpn /usr/local/sbin/openvpn" for location in $openvpn_locations do if [ -f "$location" ] then openvpn=$location fi done

Lockfile

lock="/var/lock/subsys/openvpn"

PID directory

piddir="/var/run/openvpn"

Our working directory

work=/etc/openvpn

Source function library.

. /etc/rc.d/init.d/functions

Source networking configuration.

. /etc/sysconfig/network

Check that networking is up.

if [ ${NETWORKING} = "no" ] then echo "Networking is down" exit 0 fi

Check that binary exists

if ! [ -f $openvpn ] then echo "openvpn binary not found" exit 0 fi

See how we were called.

case "$1" in start) echo -n $"Starting openvpn: " /sbin/modprobe tun >/dev/null 2>&1

From a security perspective, I think it makes

sense to remove this, and have users who need

it explictly enable in their --up scripts or

firewall setups.

echo 1 > /proc/sys/net/ipv4/ip_forward

Run startup script, if defined

if [ -f $work/openvpn-startup ]; then $work/openvpn-startup fi if [ ! -d $piddir ]; then mkdir $piddir fi if [ -f $lock ]; then

we were not shut down correctly

for pidf in /bin/ls $piddir/*.pid 2>/dev/null; do if [ -s $pidf ]; then kill cat $pidf >/dev/null 2>&1 fi rm -f $pidf done rm -f $lock sleep 2 fi rm -f $piddir/*.pid cd $work

Start every .conf in $work and run .sh if exists

errors=0 successes=0 for c in /bin/ls *.conf 2>/dev/null; do bn=${c%%.conf} if [ -f "$bn.sh" ]; then . ./$bn.sh fi rm -f $piddir/$bn.pid

Handle backward compatibility, see Red Hat Bugzilla ID #458594

script_security='' if [ -z "$( grep '^[[:space:]]*script-security[[:space:]]' $c )" ]; then script_security="--script-security 2" fi $openvpn --daemon --writepid $piddir/$bn.pid --config $c --cd $work $script_security if [ $? = 0 ]; then successes=1 else errors=1 fi done if [ $errors = 1 ]; then failure; echo else success; echo fi if [ $successes = 1 ]; then touch $lock fi ;; stop) echo -n $"Shutting down openvpn: " for pidf in /bin/ls $piddir/*.pid 2>/dev/null; do if [ -s $pidf ]; then kill cat $pidf >/dev/null 2>&1 fi rm -f $pidf done

Run shutdown script, if defined

if [ -f $work/openvpn-shutdown ]; then $work/openvpn-shutdown fi success; echo rm -f $lock ;; restart) $0 stop sleep 2 $0 start ;; reload) if [ -f $lock ]; then for pidf in /bin/ls $piddir/*.pid 2>/dev/null; do if [ -s $pidf ]; then kill -HUP cat $pidf >/dev/null 2>&1 fi done else echo "openvpn: service not started" exit 1 fi ;; reopen) if [ -f $lock ]; then for pidf in /bin/ls $piddir/*.pid 2>/dev/null; do if [ -s $pidf ]; then kill -USR1 cat $pidf >/dev/null 2>&1 fi done else echo "openvpn: service not started" exit 1 fi ;; condrestart) if [ -f $lock ]; then $0 stop

avoid race

sleep 2 $0 start fi ;; status) if [ -f $lock ]; then for pidf in /bin/ls $piddir/*.pid 2>/dev/null; do if [ -s $pidf ]; then kill -USR2 cat $pidf >/dev/null 2>&1 fi done echo "Status written to /var/log/messages" else echo "openvpn: service not started" exit 1 fi ;; *) echo "Usage: openvpn {start|stop|restart|condrestart|reload|reopen|status}" exit 1 ;; esac exit 0 [/c]

OpenVPN起動

[c] /etc/rc.d/init.d/openvpn start [/c]

ファイアウォール設定

• ルーター側で、UDPの1194番ポートへのアクセスをサーバーに転送するようにする。
• サーバー側で、UDPの1194番ポートへのアクセスを許可するようにする。

クライアントに必要な設定ファイルをローカルにダウンロード

OpenVPNはSSL通信をしたり、証明書を使って認証するため、サーバーからクライアントの証明書などを持ってきてクライアントソフトをインストール下後に使います。今回は必要な証明書などを先にローカルにダウンロードします。

クライアントに必要な設定ファイル

必要なファイルは以下になります。

• CA証明書(/etc/openvpn/ca.crt)
• クライアント証明書(/etc/openvpn/easy-rsa/keys/client1.crt)
• クライアント秘密鍵(/etc/openvpn/easy-rsa/keys/client1.key)
• TLS認証鍵(/etc/openvpn/ta.key)

ユーザーのディレクトリへコピー

証明書などはSFTPを使ってユーザーのホームディレクトリからローカルへダウンロードしたいと思います。そのため、SSHにてroot権限で必要な証明書をコピーして所有者とグループを切り替えたいと思います。

• ホームディレクトリ：/home/logw
• 所有者：logw
• グループ：logw

という設定にしたいと思います。

ホームディレクトリに証明書を格納するディレクトリを作成

[c]

mkdir /home/logw/certificate

[/c]

CA証明書をコピー

[c] cp /etc/openvpn/ca.crt /home/logw/certificate [/c]

クライアント証明書をコピー

[c] cp /etc/openvpn/easy-rsa/keys/client1.crt /home/logw/certificate [/c]

TLS認証鍵をコピー

[c] cp /etc/openvpn/ta.key /home/logw/certificate [/c]

クライアント秘密鍵をコピー

[c] cp /etc/openvpn/easy-rsa/keys/client1.key /home/logw/certificate [/c]

所有者、グループの変更

コピーしただけだと所有者やグループが｢root｣のままなのでダウンロードできません。そこで所有者とグループを変更します。 [c] chown -R logw:logw /home/logw/certificate [/c] これで所有者が変更となります。後はSFTPでログインしてcertificateディレクトリをローカルにコピーしてください。

OpenVPNインストール(クライアント側)

OpenVPN.JP 日本語情報サイトよりOpenVPN GUI for Windows 日本語版をインストールしてください。

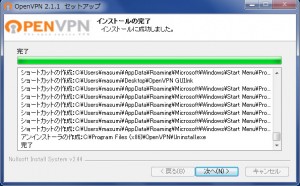

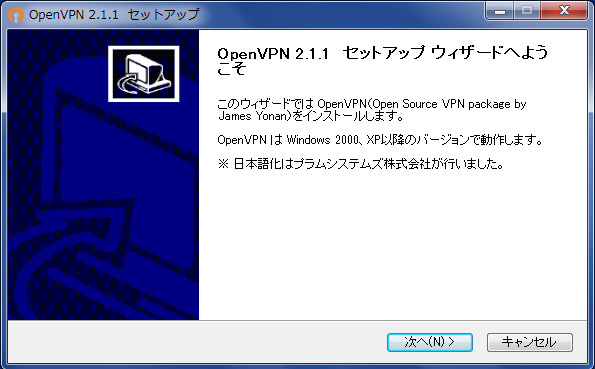

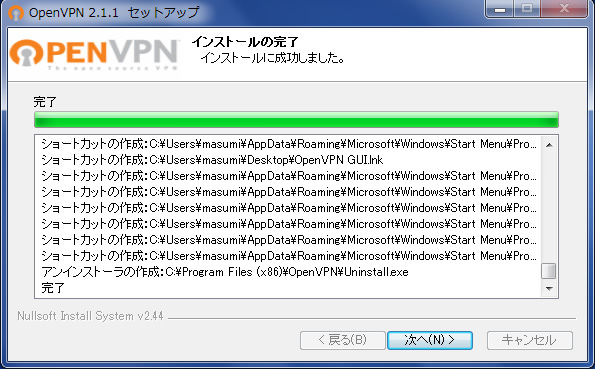

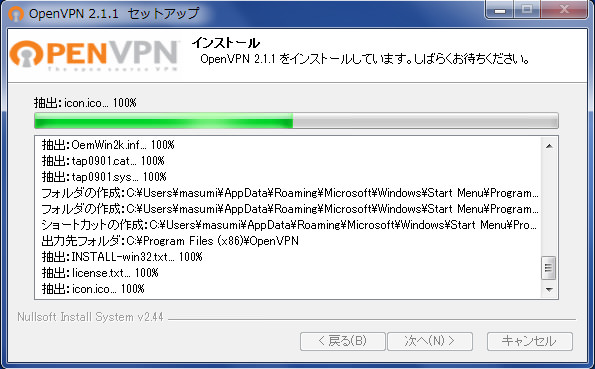

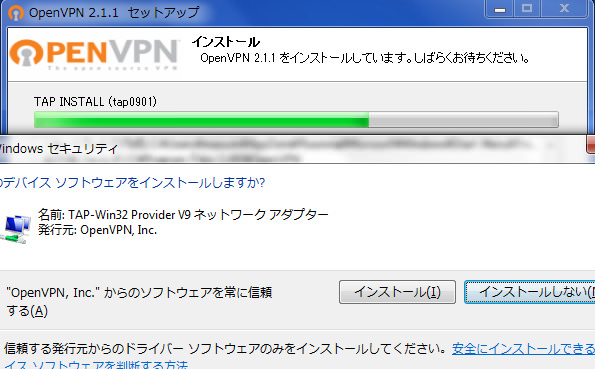

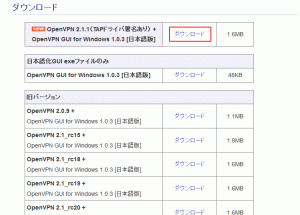

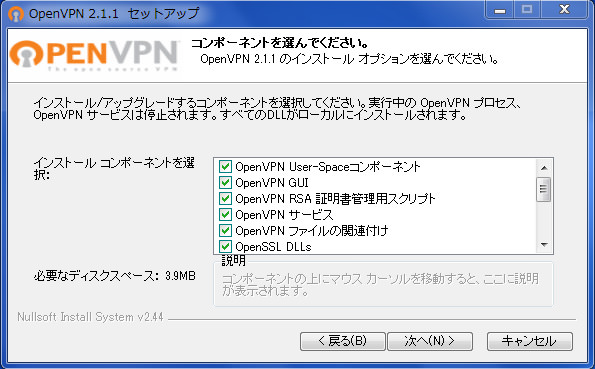

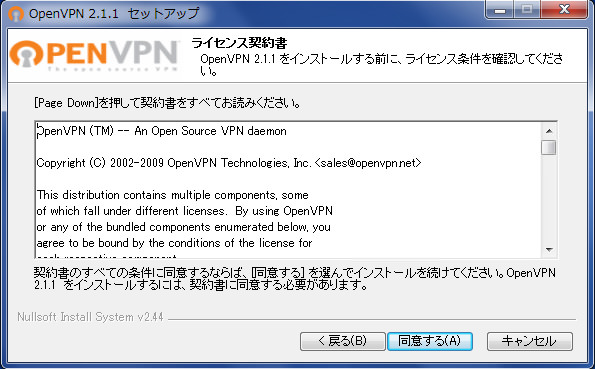

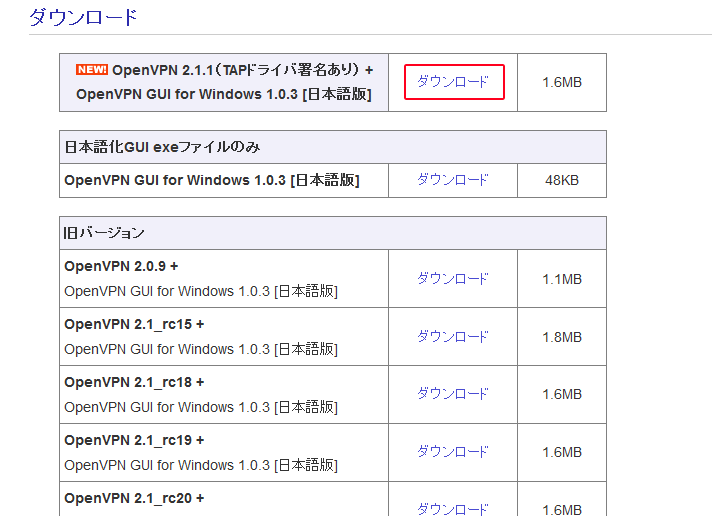

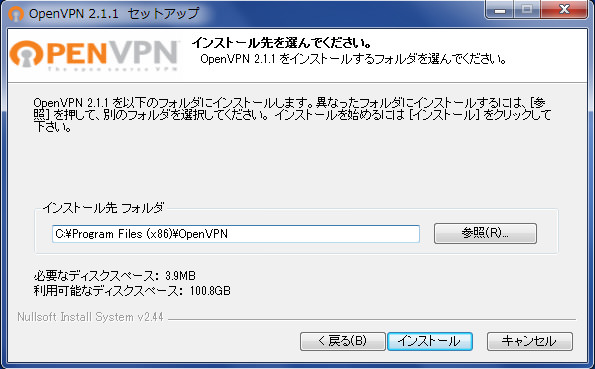

※クリックで拡大します。 最新版をダウンロードします。デスクトップでダブルクリックしてください。 次へを押して下さい 次へを押して下さい 次へを押して下さい 次へを押して下さい インストール中になります ネットワークアダプタをインストールして下さい インストール完了です 左端の赤いアイコンが｢切断状態｣になります。接続をすると緑色になります。

備考

インストールして成功したのですが、この後どうすればいいのかなと・・・

追記

接続が成功して緑色になるとローカルIPを取得します。 ※10.8.0.5または6などになります。 IPを取得したらWindowsクライアントの場合はコマンドプロンプトから｢ping 10.8.0.1｣といれてみてください。pingが返ってこれば疎通できたことになります。
